Name: Landslides

Display Field: Abbrev

Type: Feature Layer

Geometry Type: esriGeometryPolygon

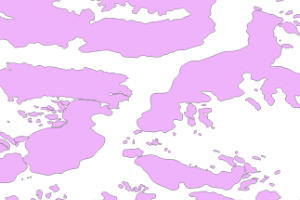

Description: Landslide areas in North Dakota are depicted on this map as mapped from historical aerial photographs, recent digital aerial imagery, and LiDAR digital elevation models, over a six-year period from 2016 to early 2023. These landslide areas were mapped at variable scales generally at 1:12,000 or less and presented at 1:24,000 scale in 1,476 individual quadrangles that cover the state. A total of 59,505 landslide areas were identified based dominantly on their surficial geomorphological expression and represent landslide areas identified up to the last date of LiDAR data collection available.Historical aerial photography used in the initial identification of landslide areas consisted of 1:20,000 paper aerial photographs from the U.S. Department of Agriculture’s aerial photography programs spanning the years from 1952 to 1965. Recent aerial imagery from the National Agricultural Imagery Program (NAIP) ranging mostly from 1997 to 2022 was also reviewed when available either in the desktop mapping environment or within the Google Earth platform.Surface elevation models created from recently acquired LiDAR data was used intensively to update previous inventory mapping work where only aerial photos were used. A LiDAR surface model was created for each of the 1,464 1:24,000 scale quadrangles which served as the basemap for final inventory mapping.Landslides in North Dakota fall into three broad categories based on their geologic environments. The highest density and number of landslides occurs throughout the rugged badlands topography in western and southwestern North Dakota. These landslides are most commonly large rotational slumps with well-defined head scarps and toes. Glacial meltwater valleys and current hydrologic corridors also contain a high number of landslides. These landslides are generally large, ancient landslides, constrained to the glacial meltwater valleys where they are mapped. The third group of landslides are riverbank slumps resultant from the continued fluctuation of river levels from seasonal flooding along active river systems across the state. The remaining landslide areas are typically smaller, more variable in type, and are locally influenced by their unique geologic setting or recently modified anthropogenic setting.Landslides in North Dakota are thought to range in age from the Quaternary to recent and contemporary landslide areas continued to be identified as mapping progresses from inventory mapping into the temporal analysis and interpretation of comparative LiDAR data sets. The areas shown on this map represent the first comprehensive landslide mapping inventory completed for the state of North Dakota.

Copyright Text: North Dakota Geological Survey

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 750000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.158245526782773E7
YMin: 5770015.364424139
XMax: -1.07634071185314E7
YMax: 6274954.59339237
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [255, 115, 223, 255]
Outline:
Style: esriSLSSolid
Color: [104, 104, 104, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Abbrev ( type: esriFieldTypeString, alias: Abbrev, length: 10 )
• Geologist ( type: esriFieldTypeString, alias: Geologist, length: 70 )
• Year ( type: esriFieldTypeInteger, alias: Year )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
