Name: DRASTIC

Display Field: AQUIFER

Type: Feature Layer

Geometry Type: esriGeometryPolygon

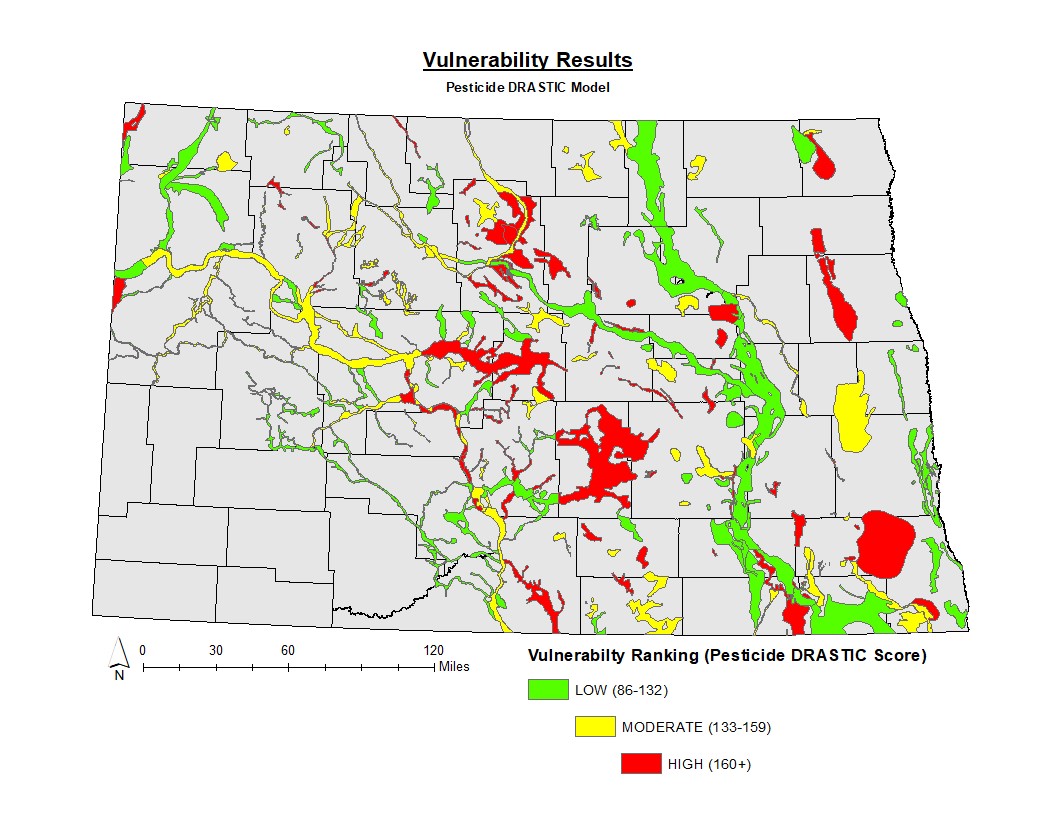

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The DRASTIC model was developed by the US EPA as a way of quantifying an aquifer’s susceptibility to surface contamination events. In 1997, the then NDDoH (now NDDEQ) applied this system to North Dakota’s shallow aquifers as part of the North Dakota Geographic Targeting System for Groundwater Monitoring (GTS). In 2015, it was decided to update the GTS to reflect changes in aquifer boundaries, water use, and land use on a regular basis. The most recent report is available online</SPAN><SPAN>. (URL </SPAN><A href="https://deq.nd.gov/publications/wq/1_GW/GeoTargetSys/2018_GTS/2019_GTS_Report_October2019.pdf"><SPAN>https://deq.nd.gov/publications/wq/1_GW/GeoTargetSys/2018_GTS/2019_GTS_Report_October2019.pdf</SPAN></A><SPAN>). The DRASTIC model was reapplied to all known shallow groundwater resources within North Dakota in order to obtain the vulnerability rating shown in Attachment 3 of the report.</SPAN></P><P><SPAN><SPAN>The DRASTIC model consists of seven weighted factors:</SPAN></SPAN></P><P><SPAN><SPAN>1. Depth to Water (feet below ground surface)</SPAN></SPAN></P><P><SPAN><SPAN>2. Net Recharge (inches per year)</SPAN></SPAN></P><P><SPAN><SPAN>3. Aquifer Media (sand and gravel, clay, silt, etc.)</SPAN></SPAN></P><P><SPAN><SPAN>4. Soil Media (Loam, Silty Loam, Sand, etc.)</SPAN></SPAN></P><P><SPAN><SPAN>5. Topography (Percent Slope)</SPAN></SPAN></P><P><SPAN><SPAN>6. Impact of the Vadose Zone (Silt/Clay, Confining Layer, etc.)</SPAN></SPAN></P><P><SPAN><SPAN>7. Hydraulic Conductivity (cubic feet per year)</SPAN></SPAN></P><P><SPAN><SPAN>Each factor has two associated fields. These fields represent the actual unit value of the factor, and the second field represents the score* assigned to the factor. A score is a rating based on a scale of values, used along with a weighting factor to generate a final DRASTIC score.</SPAN></SPAN></P><P><SPAN>The final two fields, DRASTIC and P_DRASTIC represent two methods of rating aquifers. The DRASTIC value is a general assessment of contamination susceptibility, while the P_DRASTIC represents a score adjusted to better represent susceptibility to pesticide use contamination. This is generally referred to as a “Rating” in the DRASTIC methodology but has been changed here to remain consistent with the GTS methods of differentiating between values, scores, and ratings. See North Dakota Geographic Targeting System for Groundwater Monitoring for additional information.</SPAN></P><P><SPAN>In December of 2018, an additional assessment was conducted on the water levels of confined aquifers to account for hydrostatic pressure, primarily addressing the Spiritwood Aquifer System. These changes are reflected in the December, 2018 updated GTS report.</SPAN></P><P><SPAN>In January 2021, 68 new aquifers were added to the layer that were included in the "2021 Addendum to the 2019 North Dakota Geographic Targeting System For Groundwater Monitoring". Four aquifer names were also updated and all aquifer boundaries were updated to match North Dakota State Water Commission aquifer delineations and names as of January 2021. The 2021 addendum report can be found online at </SPAN><A href="https://deq.nd.gov/WQ/Publications.aspx"><SPAN>https://deq.nd.gov/WQ/publications.aspx </SPAN></A><SPAN>under "Groundwater Protection Program."</SPAN></P></DIV></DIV></DIV>

Copyright Text: Aller, Linda, Truman Bennett, Jay H. Lehr, and Rebecca J. Petty. DRASTIC: A Standardized System for Evaluating Ground Water Pollution Potential Using Hydrogeologic Settings. Chicago: U.S. Environmental Protection Agency, 1985. Print. North Dakota State Water Commission. Radig, Scott. North Dakota Geographic Targeting System for Groundwater Monitoring.Bismarck: U.S. North Dakota Department of Health, 1997. Print. Authors: Nick Budde, Derek Kannenberg, Casey Gleich, Andrew Peterson, North Dakota Department of Environmental Quality - Division of Water Quality, Groundwater Protection Program.

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.1582671110376867E7
YMin: 5752963.015740613
XMax: -1.075026030609656E7
YMax: 6274810.471639203
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: D_RATING
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: LOW
  Label: LOW
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 198, 62, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: MODERATE
  Label: MODERATE
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 127, 72, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: HIGH
  Label: HIGH
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [227, 26, 28, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• AQUIFER ( type: esriFieldTypeString, alias: Aquifer Name, length: 1073741822 )
• D_SCORE ( type: esriFieldTypeInteger, alias: DRASTIC Score )
• D_RATING ( type: esriFieldTypeString, alias: DRASTIC Rating, length: 1073741822 )
• PD_SCORE ( type: esriFieldTypeInteger, alias: Pesticide DRASTIC Score )
• PD_RATING ( type: esriFieldTypeString, alias: Pesticide DRASTIC Rating, length: 1073741822 )
• DTW ( type: esriFieldTypeDouble, alias: Depth To Water )
• DTW_SCORE ( type: esriFieldTypeInteger, alias: Depth to Water Score )
• DTW_RATING ( type: esriFieldTypeString, alias: Depth to Water Rating, length: 1073741822 )
• RECHARGE ( type: esriFieldTypeInteger, alias: Recharge )
• RECHARGE_SCORE ( type: esriFieldTypeInteger, alias: Recharge Score )
• RECHARGE_RATING ( type: esriFieldTypeString, alias: Recharge Rating, length: 1073741822 )
• AQ_MATERIAL ( type: esriFieldTypeString, alias: Aquifer Medium, length: 1073741822 )
• AQ_MAT_SCORE ( type: esriFieldTypeInteger, alias: Aquifer Medium Score )
• AQ_MAT_RATING ( type: esriFieldTypeString, alias: Aquifer Medium Rating, length: 1073741822 )
• SOILTEXTURE ( type: esriFieldTypeString, alias: Soil Texture, length: 1073741822 )
• SOILTEXTURE_SCORE ( type: esriFieldTypeInteger, alias: Soil Texture Score )
• SOILTEXTURE_RATING ( type: esriFieldTypeString, alias: Soil Texture Rating, length: 1073741822 )
• TOPO ( type: esriFieldTypeInteger, alias: Topography )
• TOPO_SCORE ( type: esriFieldTypeInteger, alias: Topography Score )
• TOPO_RATING ( type: esriFieldTypeString, alias: Topography Rating, length: 1073741822 )
• VZONE_MATERIAL ( type: esriFieldTypeString, alias: Vadose Zone Medium, length: 1073741822 )
• VZONE_SCORE ( type: esriFieldTypeInteger, alias: Vadose Zone Medium Score )
• VZONE_RATING ( type: esriFieldTypeString, alias: Vadose Zone Medium Rating, length: 1073741822 )
• HC ( type: esriFieldTypeDouble, alias: Hydraulic Conductivity )
• HC_SCORE ( type: esriFieldTypeInteger, alias: HydrCond Score )
• HC_RATING ( type: esriFieldTypeString, alias: HydrCond Rating, length: 1073741822 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
